FRONT HOPPERS

ASPRO

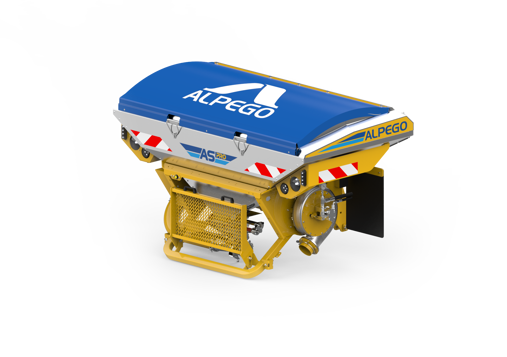

Front/rear mounted combination seed and fertiliser

The ASPRO front tank is designed to work with drills and cultivators of varying brands, up to a working width of 6m. The ASPRO front tank is capable of distributing seed or fertiliser accurately via a single transfer pipe to the rear implement.

RDS SUPER-PLUS CONTROL BOX AND GPS SPEED SENSOR
- Manages drilling operation
- Monitors fan, metering roller and seed level
- Pre-start metering function

ISOBUS OPTION
Control of all the functions using the tractor screen

STAINLESS STEEL DOSAL ELECTRONIC METERING UNIT
CAPABLE OF 2KG TO 450KG/HA
- Single segmented roller for large and small seeds

TURBO ROTAL IMPELLER IN DISTRIBUTION HEAD
- Precise, even seed distribution

• Cat II linkage
• 1400 litre hopper (extendable to 1900)
• Hydraulic drive fan
• Electric half width shut off (option)
• 2+2 tramlines (option)
• Front LED lights and markers

ASMAX

Front/rear mounted combination seed and fertiliser

The ASMAX front tank has two metering units and a variable split hopper making it capable of metering seed, fertiliser or both at the same time. Combined with a rear distribution system it is designed for the professional user and to work varying brands of drills and cultivators up to a working width of 8m with seed only, or 6m with seed and fertiliser.

TWO STAINLESS STEEL DOSAL ELECTRONIC METERING UNITS
2KG TO 450KG/HA EACH
- Single segmented roller for fertiliser, large and small seeds
- Independently variable metering rates

TURBO ROTAL IMPELLER IN DISTRIBUTION HEAD
- Precise, even seed distribution

STAINLESS STEEL VARIABLE SPLIT FRONT TANK
- 1/2:1/2 or 1/3:2/3

FULL ISOBUS DRILL MANAGEMENT USING THE TRACTOR SCREEN

• Cat II linkage
• 2300 litre hopper
• Hydraulic drive fan
• Electric half width shut off (option)
• 2+2 tramlines (option)
• Front LED lights and markers

TURBO ROTAL

The Turbo Rotal system is an innovative solution for an issue that affects all drills especially when using long seed pipes at wider working widths. It consists of a spinning impeller located in the centre of the distribution head that promotes more uniform distribution of the seed to the individual outlets.

Even distribution for uniform application (JET-X ONLY)

This improves the consistency of seed volume delivered to each outlet by 50% which, coupled with Alpego attention to detail throughout the other elements of the metering and distribution, provides market leading accuracy.

DOSAL

Accurate high capacity metering.

Stainless steel metering unit suitable for large and small seeds and Fertiliser.

The Flexible DOSAL metering unit is designed for maximum volumes alongside precision for small seeds. It utilises an adjustable metering roller and adjustable gears to achieve unbeatable accuracy with small and large seeds as well as fertiliser.

Super-Plus

• Manages seeding operation
• Push button calibration
• Pre start metering function
• Monitors fan, metering roller and seed level
• On the move seed rate adjustment
• GPS speed sensor

ISOBUS

Isobus control through the tractor screen

• Full management of the drilling and tramlines
• Push button calibration
• Pre start metering function
• Fan, metering roller and low level monitoring
• On the move seed rate adjustment

TC7

• 7” high resolution colour touch-screen (800x480TFT)
• 2 USB ports for data transfer
• RS232 serial port
• Camera input
• CAN-BUS connector
• Wireless interface from rear USB
• Additional liscenced functions available,
• Task Control (TC), Section control (TCSC), Variable rate (VRC).

Option for tractors without ISOBUS

ASPRO

The ASPRO front hopper is designed for use in combination with a coulter bar up 6m wide for cereals or for distributing fertiliser when combined with different types of machinery (weeders, precision drills, cultivators etc).

ASMAX

The ASMAX is a multifunctional front hopper which can be used for simultaneously distributing seed and fertiliser up to 6m working width. In its single product configuration it is designed for sowing cereals up to a working width of 8m or for distributing fertiliser when combined with different types of machinery (weeders, precison drills, cultivators etc)
