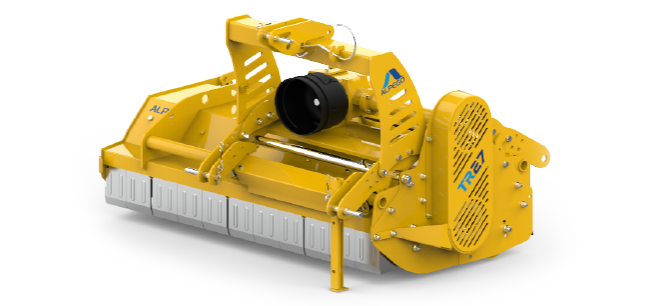

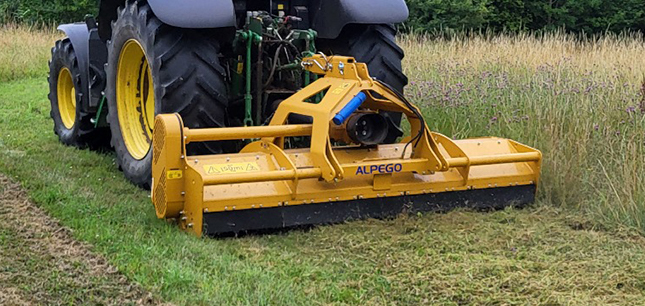

FLAIL MOWERS

“SSA” MULCHING CHAMBER

The SSA (Super Shredder Alpego) mulching chamber, which has an Italian patent, enables the TRISAR range of flail mowers to be adjusted to process material according to the required finish.

Microsoft.CSharp.RuntimeBinder.RuntimeBinderException: 'Newtonsoft.Json.Linq.JValue' does not contain a definition for 'image'
   at CallSite.Target(Closure , CallSite , Object )
   at System.Dynamic.UpdateDelegates.UpdateAndExecute1[T0,TRet](CallSite site, T0 arg0)
   at CallSite.Target(Closure , CallSite , Object )
   at AspNetCore.Views_Partials_grid_editors_media.ExecuteAsync() in D:\rade_inetpub\opico-10\www-10B\Views\Partials\grid\editors\media.cshtml:line 62
   at Microsoft.AspNetCore.Mvc.Razor.RazorView.RenderPageCoreAsync(IRazorPage page, ViewContext context)
   at Microsoft.AspNetCore.Mvc.Razor.RazorView.RenderPageAsync(IRazorPage page, ViewContext context, Boolean invokeViewStarts)
   at Microsoft.AspNetCore.Mvc.Razor.RazorView.RenderAsync(ViewContext context)
   at Microsoft.AspNetCore.Mvc.ViewFeatures.HtmlHelper.RenderPartialCoreAsync(String partialViewName, Object model, ViewDataDictionary viewData, TextWriter writer)
   at Microsoft.AspNetCore.Mvc.ViewFeatures.HtmlHelper.PartialAsync(String partialViewName, Object model, ViewDataDictionary viewData)
   at AspNetCore.Views_Partials_grid_editors_base.ExecuteAsync() in D:\rade_inetpub\opico-10\www-10B\Views\Partials\grid\editors\base.cshtml:line 11

“SSA” GRASS FUNCTION
When the rear deflector hood is in the open position material is cut, chopped and discharged over the top of the rear roller. Suitable for grass and thick vegetation.

REINFORCED ROTOR

The flail rotor is reinforced and fitted with oversized 1.8kg hammer flails to ensure longevity and aggressive cutting and mulching.

Microsoft.CSharp.RuntimeBinder.RuntimeBinderException: 'Newtonsoft.Json.Linq.JValue' does not contain a definition for 'image'
   at CallSite.Target(Closure , CallSite , Object )
   at AspNetCore.Views_Partials_grid_editors_media.ExecuteAsync() in D:\rade_inetpub\opico-10\www-10B\Views\Partials\grid\editors\media.cshtml:line 62
   at Microsoft.AspNetCore.Mvc.Razor.RazorView.RenderPageCoreAsync(IRazorPage page, ViewContext context)
   at Microsoft.AspNetCore.Mvc.Razor.RazorView.RenderPageAsync(IRazorPage page, ViewContext context, Boolean invokeViewStarts)
   at Microsoft.AspNetCore.Mvc.Razor.RazorView.RenderAsync(ViewContext context)
   at Microsoft.AspNetCore.Mvc.ViewFeatures.HtmlHelper.RenderPartialCoreAsync(String partialViewName, Object model, ViewDataDictionary viewData, TextWriter writer)
   at Microsoft.AspNetCore.Mvc.ViewFeatures.HtmlHelper.PartialAsync(String partialViewName, Object model, ViewDataDictionary viewData)
   at AspNetCore.Views_Partials_grid_editors_base.ExecuteAsync() in D:\rade_inetpub\opico-10\www-10B\Views\Partials\grid\editors\base.cshtml:line 11

“SSA” TURBO-MULCHER
With the deflector hood closed woody residues recirculate around the mulching chamber until they are completely mulched before being ejected under the roller. Suitable for small bushes, brushwood and pruning

Weight Transfer System

The Grass Roller's hydraulic folding system is linked into two accumulators and a hydraulic pressure gauge. The gauge allows the operator to set the amount of weight transfer from the central section to the wings, dependent on ground conditions and how much water is in the roller sections.

Grassland rolls without a weight transfer system tend to exert the highest ground pressure in the centre as the chassis of the rolls, drawbar and wheels are above the middle roll section.

Even with a basic sprung weight transfer system the hinges at the end of the centre roller section negate much of the transfer effect.

FREE FLOATING ROLLER SECTIONS - HE-VA Rolls have free floating roller sections and the SAT weight transfer system which uses hydraulic accumulators and a setting gauge to allow the operator to redistribute additional frame weight from the centre section to the wings ensuring even weight distribution across the full width of the rol

CULTIVATED GROUND - Not only can you use the HE-VA Grass Roller to consolidate grassland, it is also ideal for work on cultivated ground.

With the addition of two rows of harrowing tines and a levelling bar, you have a very useful multi-purpose field roller for existing grassland for thatch removal or seedbed preparation. A HE-VA Multi-Seeder and mounting kit is also available.

Contour Following

Independent Flotation and 5 Pivot Points
Centre pivoting on the two wing sections, two folding pivots and the pivoting drawbar eye allow individual sections to follow the contours. Add to this the floating inner links which join the wing sections to the centre rolls section allowing all three sections to float completely independently and you have the best possible contour adaption.

Water Ballastable Rolls

The weight of the roller can be increased by over 70% by filling the Roller Tubes with water as ballast if required, this provides for very effective consolidation on spring grassland or before reseeding cultivated land.

Ready to Work in Seconds

HE-VA's innovative folding system allows the operator to fold or unfold the machine from the tractor seat in seconds using only two spool valves, when folded the wings are effectively locked automatically for road transport.

Rounded Roller Ends

The Grass Roller is made with spun chamfered steel ends on each section, these ensure that there is no damage done to the grass when turning sharply on the headlands. Drum thickness: 610 mm tube = 10mm, 710mm tube - 11mm.
